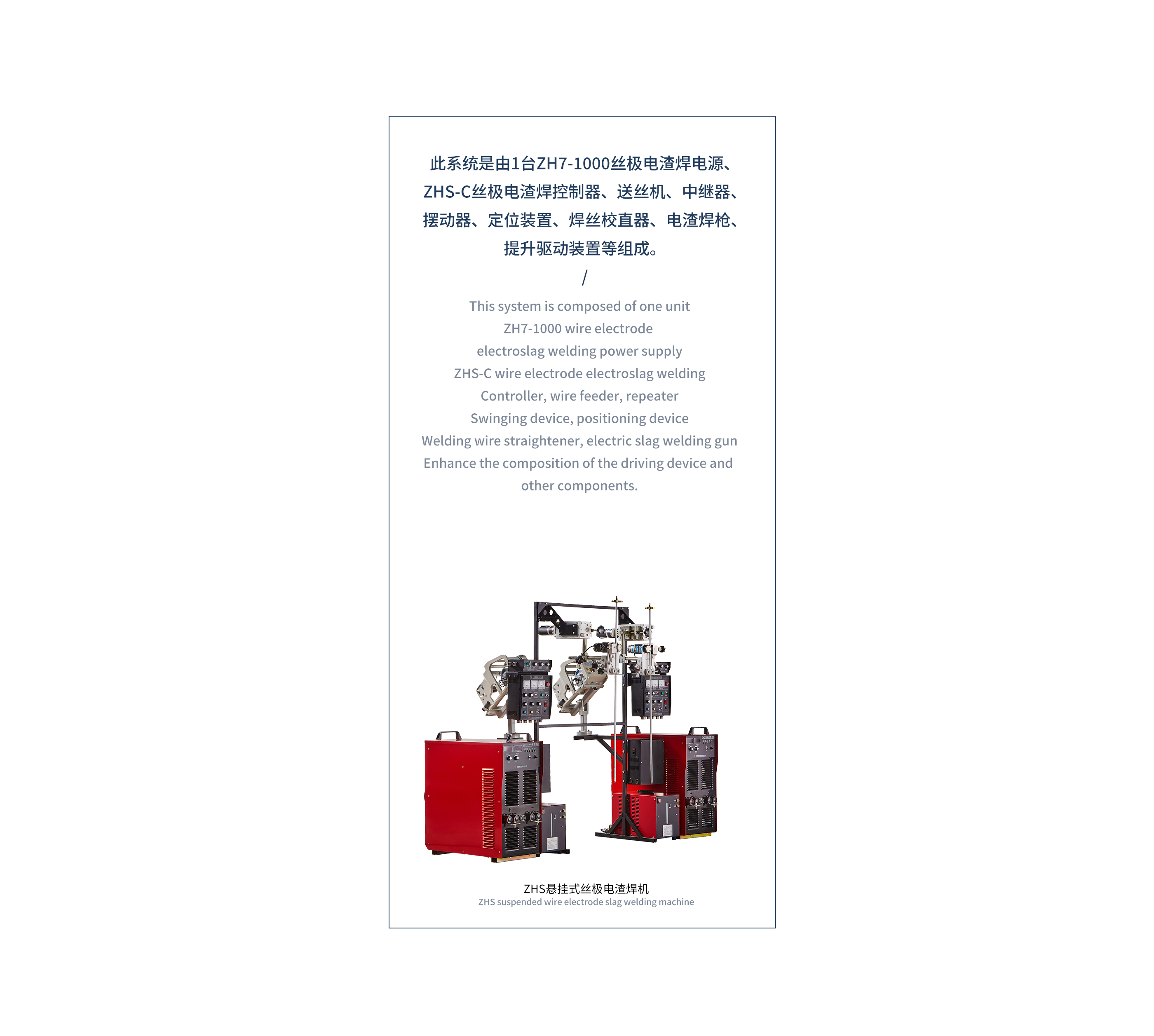

ZHS悬挂式丝极电渣焊机
ZHS suspended wire electrode slag welding machine
产品特点
1、由于采用细焊丝,高的电流密度使熔敷率高达 140g/min,且焊缝一次成形,因而焊接效率高。
2、摆动器的应用使单丝最大可焊板厚达 100mm(其它厂家可焊板厚范围仅为 16~65mm)
3、特别设计的焊接电流检测控制系统由于和电流表指针无关(不同于其它焊机厂采用的渡边 Watanabe 表依赖于电流表指针的动作),具有防震动、高精度和高可靠性的特点。
4、容易操作;电渣焊枪根据预设电流自动提升,因此一个操作工同时能操控两台以上的机器。
5、仅用焊丝作为填充材料,焊接成本低。
6、极低的设备维护维修成本。采用市场上能大量提供的高性价比高可靠性元器件,尽量降低用户的使用成本。
7、具有慢送丝引弧和收弧削熔球(FTT)功能,使引弧更加可靠,并省去了焊后剪焊丝端部熔球的工序。
8、 具有电机过载及短路保护功能,可以避免电机堵转和短路时损坏元件。
9、具有三坐标(ZHS)或两坐标(ZHS(L))位置调节、水平旋转、十字方向倾斜角度调节和焊丝十字校直功能,可以方便调节电渣焊枪位置、角度,使焊丝端部在焊枪轴线方向。
10、设有焊接时台车行走锁定接口,可以和台车控制系统连接,避免焊接时因误操作导致台车移动。
11、设有冷却水异常告警保护功能,当循环冷却水箱未开或冷却水流量明显减小、断流或堵塞时,向用户发出声光告警,同时自动停止焊接过程,以避免焊枪和水冷电缆因过热损坏。
Product Features
1. Due to the use of fine welding wire and high current density, the deposition rate can reach up to 140g/min, and the weld seam can be formed in one go, resulting in high welding efficiency.
2. The application of the swinging device enables the maximum weldable plate thickness of a single wire to reach 100mm (the weldable plate thickness range of other manufacturers is only 16-65mm)
3. The specially designed welding current detection and control system has the characteristics of anti vibration, high precision, and high reliability due to its independence from the ammeter pointer (unlike the Watanabe meter used by other welding machine factories that relies on the movement of the ammeter pointer).
4. Easy to operate; The electric slag welding gun automatically increases according to the preset current, so one operator can control more than two machines at the same time.
5. Using only welding wire as a filler material results in low welding costs.
6. Extremely low equipment maintenance and repair costs. Using high cost-effective and reliable components that can be provided in large quantities in the market, we aim to minimize the user's usage costs.
7. It has the functions of slow wire feeding arc initiation and arc extinguishing melting ball (FTT), making arc initiation more reliable and eliminating the process of cutting the molten ball at the end of the welding wire after welding.
8. Equipped with motor overload and short circuit protection functions, it can prevent damage to components during motor stalling and short circuits.
9. It has the functions of three coordinate (ZHS) or two coordinate (ZHS (L)) position adjustment, horizontal rotation, cross direction tilt angle adjustment, and wire cross straightening, which can easily adjust the position and angle of the electric slag welding gun, so that the end of the welding wire is in the direction of the welding gun axis.
10. There is a locking interface for the trolley during welding, which can be connected to the trolley control system to prevent the trolley from moving due to misoperation during welding.
11. Equipped with cooling water abnormal alarm protection function, when the circulating cooling water tank is not turned on or the cooling water flow is significantly reduced, cut off or blocked, an audible and visual alarm will be issued to the user, and the welding process will be automatically stopped to avoid damage to the welding gun and water-cooled cable due to overheating.
适用范围
1、钢板厚度:16—100mm
2、钢种:低碳钢、低合金钢、中碳钢、耐火钢等
3、焊缝长度:最大 1680mm(依赖于电渣焊枪长度)
4、焊缝结构:T 型焊缝和对接焊缝
scope of application
1. Steel plate thickness: 16-100mm
2. Steel types: low carbon steel, low alloy steel, medium carbon steel, refractory steel, etc
3. Weld seam length: maximum 1680mm (depending on the length of the electric slag welding gun)
4. Weld structure: T-shaped weld and butt weld
技术参数 /Technical Parameter
