小车式熔嘴电渣焊机(IGBT)Small car type melting nozzle electric slag welding machine (IGBT)

1000/1250

该焊机是通过电弧传递能量,在焊接区域产生高温,是焊接材料和工件表面熔化,并在冷却后形成坚固的焊缝。熔嘴是焊接电弧和熔融金属的聚焦点,它能集中电流和热量,增进金属熔化并形成均匀的焊缝。This welding machine transfers energy through an arc, generating high temperatures in the welding area, melting the welding material and workpiece surface, and forming a strong weld after cooling. The nozzle is the focal point of the welding arc and molten metal, which can concentrate current and heat, promote metal melting, and form a uniform weld seam.

产品特点

      此系统是由1台ZH7系列电渣电源、1台WT-ZH熔嘴电渣焊小车组成,利用电流通过熔渣产生的电阻热作为热源,在焊接区域产生高温,将工件和填充金属熔合成焊缝的垂直位置的焊接设备。

      熔嘴是焊接电弧和熔融金属的聚焦点,它能集中电流和热量,使得焊接材料和工件表面熔化,形成均匀的焊缝,并在冷却后形成坚固的焊缝。

Product Features

      This system consists of one ZH7 series electric slag power supply and one WT-ZH melting nozzle electric slag welding trolley. It uses the resistance heat generated by the current passing through the slag as a heat source to generate high temperature in the welding area. The welding equipment melts the workpiece and filler metal into a vertical position of the weld seam.

      The nozzle is the focal point of the welding arc and molten metal, which can concentrate current and heat, causing the welding material and workpiece surface to melt, forming a uniform weld seam, and forming a strong weld seam after cooling.

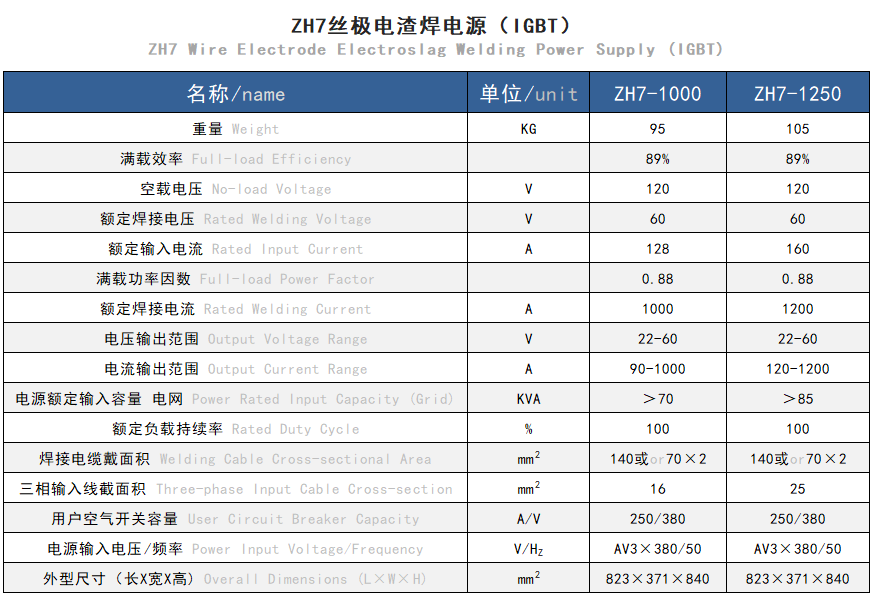

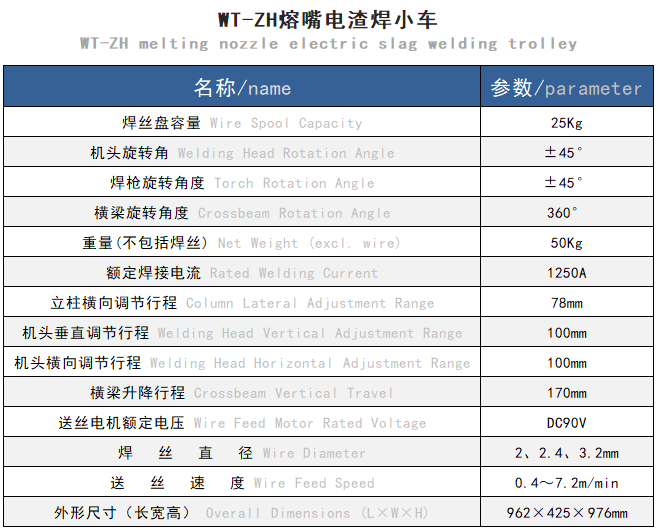

技术参数/Technical Parameter
